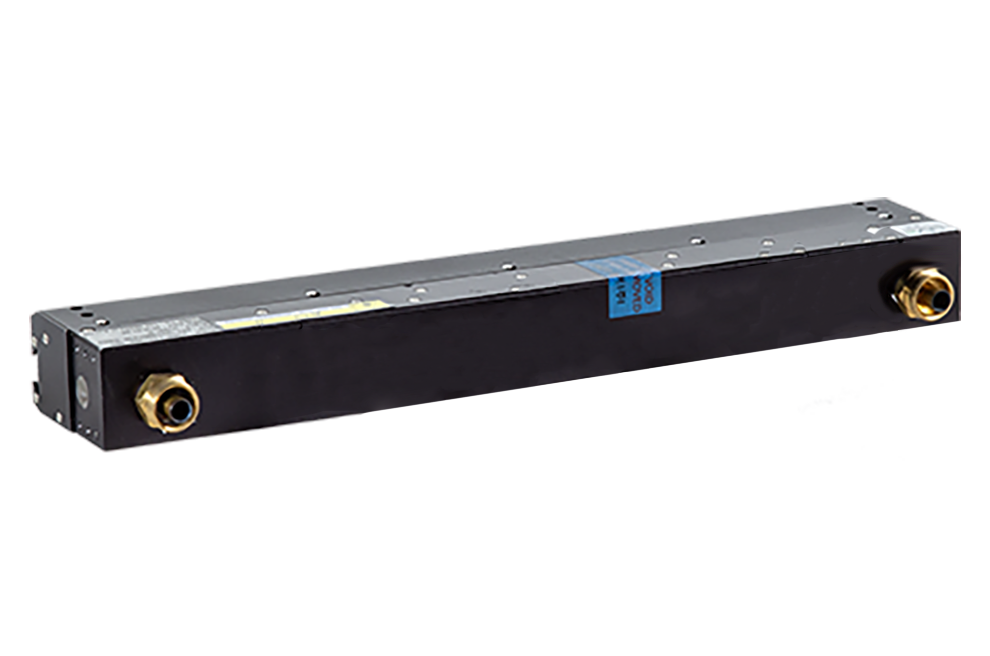

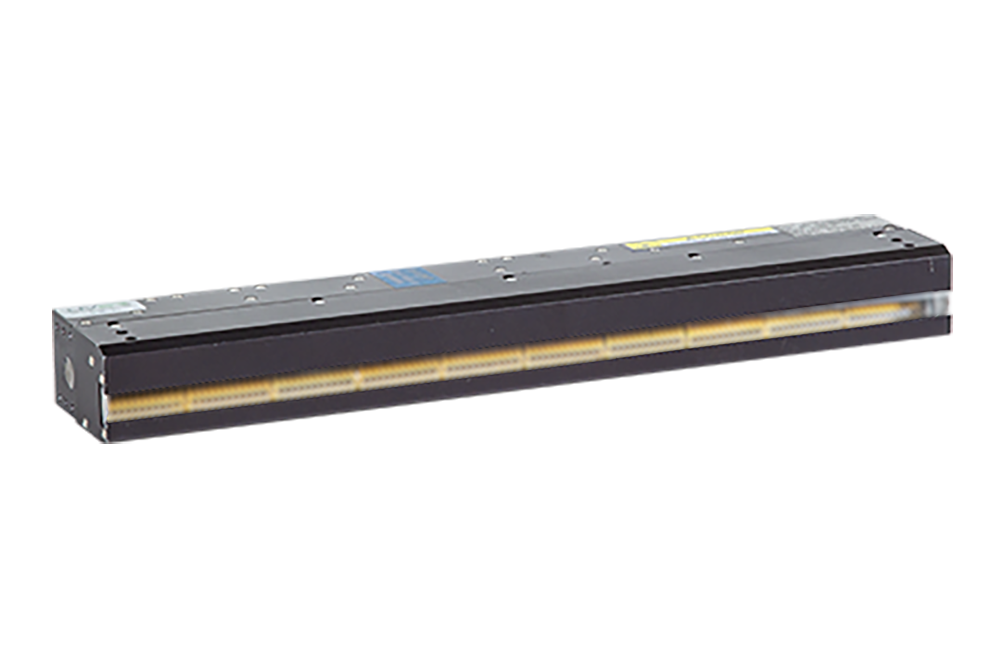

Linear Curing : UVER-CXX-360

  • UVER-CXX-360
  • UVER-CXX-360

Basic Information

Name of the product UVER-CXX-360
Outer dimension (mm) (W)360 x (D)50 x (H)100
Effective Illumination Area (mm) 330x15
Illumination Strength(㎽/㎠)
8,000 ~ 18,000
Cooling method Water & Air Cooling
Communication method RS232/PLC/I.O







Complex cooling system

Choice of Wavelength Configurations

Adjustable beam width

Elaborate output adjustment (1024steps)

Features protection functions as over-current, over-voltage, temperature, breaking of wire, short-circuit, no-light
